Draw Bars
www.ssfabrics.com
DRAWBAR (CROSS SECTION - 80 X 40MM)
| CODE | A | B | C | D | E | F | NO. OF HOLES |
|---|---|---|---|---|---|---|---|
| DB-SSA804001 | 890 | 63 | 112 | 90 | 28 | 28 | 7 |
| DB-SSA804002 | 940 | 60 | 125 | 95 | 28.5 | 26 | 7 |
| DB-SSA804003 | 960 | 55 | 212.5 | 212.5 | 28 | 28.5 | 3 |
| DB-SSA804004 | 1000 | 60 | 160 | 140 | 28 | 28 | 5 |
| DB-SSA804005 | 934 | 57 | 110 | 100 | 28 | 28 | 7 |
| DB-SSA804006 | 930 | 55 | 110 | 100 | 28 | 28 | 7 |
| DB-SSA804007 | 862 | 60 | 122 | 83 | 28.4 | 26 | 7 |
| DB-SSA804008 | 770 | 56 | 164.5 | 164.5 | 28.5 | 26.5 | 3 |
| DB-SSA804009 | 1085 | 60 | 152.5 | 110 | 36 | 33 | 7 |
| DB-SSA804010 | 1094 | 65 | 152 | 110 | 36 | 32 | 7 |
| DB-SSA804011 | 1084 | 60 | 202 | 140 | 28.5 | 26 | 5 |
DRAWBAR (CROSS SECTION - 90 X 45MM)
| CODE | A | B | C | D | E | F | NO. OF HOLES |
| DB-SSA904501 | 1094 | 65 | 152 | 110 | 36 | 32 | 7 |
| DB-SSA904502 | 1085 | 60 | 82 | 80 | 36 | 33 | 11 |

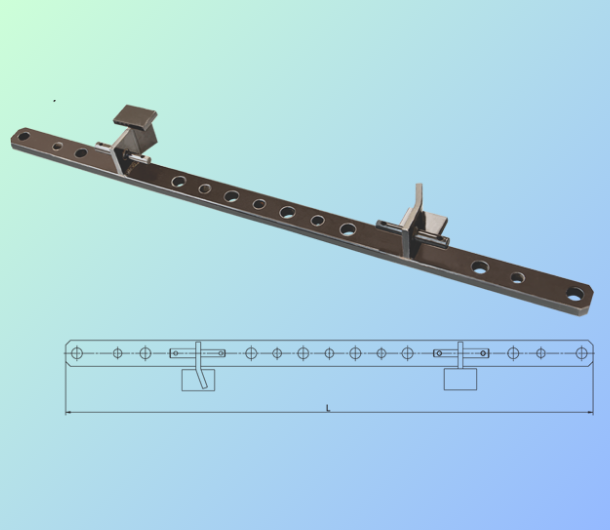

DRAWBAR (CROSS SECTION - 80 X 30MM)
| CODE | L |
|---|---|
| DB-SSA69-5-900 | 900 |
| DB-SSA69-5-1100 | 1100 |
| DB-SSA69-5-1620 | 1620 |
